EPT7010MG, EPT7010M 4/16 MBPS Token Ring 24 Pin Module For Transmit And Receive

PCA Electronics

Description

www.DataSheet4U.com 4/16 Mbps Token Ring 24 Pin Module for Transmit and Receive .

📥 Download Datasheet

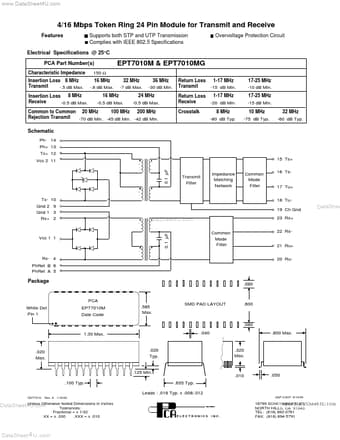

EPT7010MG Datasheet Preview — This datasheet PDF includes multiple part numbers: EPT7010MG, EPT7010M. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: EPT7010MG, EPT7010M
Manufacturer: PCA Electronics
File Size: 171.85 KB
Datasheet: EPT7010M_PCAElectronics.pdf
Description: 4/16 MBPS Token Ring 24 Pin Module For Transmit And Receive
Note: This datasheet PDF includes multiple part numbers: EPT7010MG, EPT7010M.
Please refer to the document for exact specifications by model.

Features

* Supports both STP and UTP Transmission Complies with IEEE 802.5 Specifications Overvoltage Protection Circuit Electrical Specifications @ 25°C PCA Part Number(s) Characteristic Impedance Insertion Loss 8 MHz Transmit -.5 dB Max. 8 MHz Insertion Loss Receive -0.5 dB Max. 150 Ω 16 MHz -.8 dB Max. 32
