EPT7034S Token Ring Transceiver Module

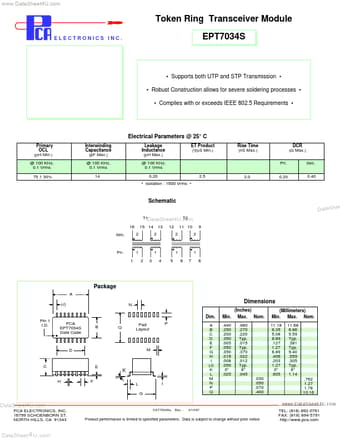

www.DataSheet4U.com Token Ring Transceiver Module ELECTRONICS INC. EPT7034S Supports both UTP and STP Transmission Robust Construction allows for severe soldering processes Complies with or exceeds IEEE 802.5 Requirements Electrical Parameters @ 25° C Primary OCL (µH Min.) @ 100 KHz, 0.1 Vrms 75 ± 30% Interwinding Capacitance (pF Max.) @ 100 KHz, 0.1 Vrms 14 Leakage Inductance (µH Max.) @ 100 KHz, 0.1 Vrms 0.20 Isolation :.

EPT7034S_PCAElectronics.pdf

EPT7034S Datasheet Preview — Preview of EPT7034S PDF

Datasheet Details

Part number:

EPT7034S

Manufacturer:

PCA Electronics

File Size:

168.46 KB

Description:

Token ring transceiver module.
