EPT7090 Token Ring Transmitter Module

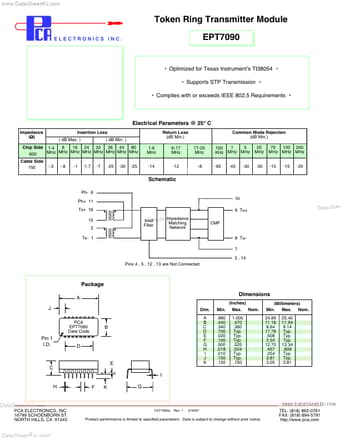

www.DataSheet4U.com Token Ring Transmitter Module ELECTRONICS INC. EPT7090 Optimized for Texas Instrument’s TI38054 Supports STP Transmission Complies with or exceeds IEEE 802.5 Requirements Electrical Parameters @ 25° C Impedance (Ω ) Insertion Loss ( dB Max. ) ( dB Min. ) 1-6 MHz -14 Return Loss (dB Min.) 6-17 MHz -12 17-25 MHz -8 Common Mode Rejection (dB Min.) 1 5 100 KHz MHz MHz -65 -45 -30 20 MHz -30 70 100 200 MHz MHz MHz -15.

EPT7090_PCAElectronics.pdf

EPT7090 Datasheet Preview — Preview of EPT7090 PDF

Datasheet Details

Part number:

EPT7090

Manufacturer:

PCA Electronics

File Size:

187.70 KB

Description:

Token ring transmitter module.
