PTB3V100 Schottky Rectifier

Description

PTB3V100 PFC Device Corporation 3A 100V HPTR® Schottky Rectifier Major ratings and characteristics Characteristics IF(AV) Rectangular Waveform VRRM .

📥 Download Datasheet

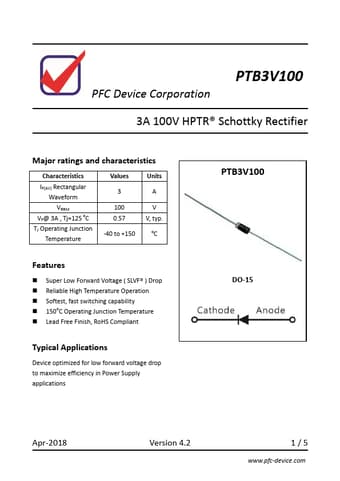

PTB3V100 Datasheet Preview — Preview of PTB3V100 PDF

Datasheet Specifications

Part number: PTB3V100
Manufacturer: PFC Device
File Size: 533.57 KB
Datasheet: PTB3V100-PFCDevice.pdf
Description: Schottky Rectifier

Features

* Super Low Forward Voltage ( SLVF® ) Drop
* Reliable High Temperature Operation
* Softest, fast switching capability
* 150oC Operating Junction Temperature

Applications

* Device optimized for low forward voltage drop to maximize efficiency in Power Supply applications PTB3V100 DO-15 Apr-2018 Version 4.2 1/5 www. pfc-device. com Characteristics PTB3V100 1. Characteristics Maximum Ratings Characteristics ( TA = 25 oC unless otherwise specified ) Parameter DC Bl
