PT16103

480CH TFT LCD Source Driver

PT16103 Features

* 64-gray scale source driver for active matrix TFT LCD panels

* Selectable 480/402 output channels

* Logic voltage power supply: 2.7V to 3.6V

* High voltage power supply: 7.0V to 13.5V

* Maximum RSDS operating frequency at 85 MHz

* Bi-directional shift right/left function

PT16103 General Description

The PT16103 is a CMOS silicon source driver IC for active matrix TFT LCD panels. After a CMOS/RSDS 6-bit RGB data is applied, this device will generate 64-gray scale for driving the TFT LCD panel source lines. It supports 480/402 channel selectable function, shift right/left selectable function, and.

PT16103 Datasheet (508.66 KB)

Rating: 1 ★ (4 votes)

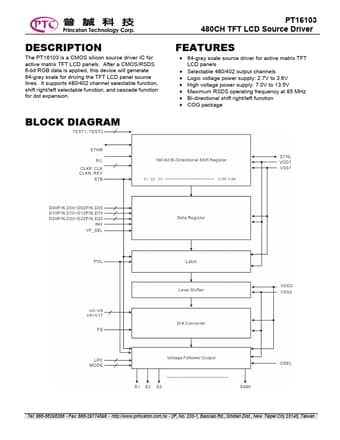

Preview of PT16103 PDF

Datasheet Details

Part number:

PT16103

Manufacturer:

PTC

File Size:

508.66 KB

Description:

480ch tft lcd source driver.
