PT16514 - LCD Driver

Product Overview

PTC

PT16514 LCD Driver by PTC - Datasheet Preview — Datasheet preview – PT16514

Datasheet Details

Part number	PT16514
Manufacturer	PTC
File Size	457.56 KB
Description	LCD Driver
Datasheet	PT16514 Datasheet

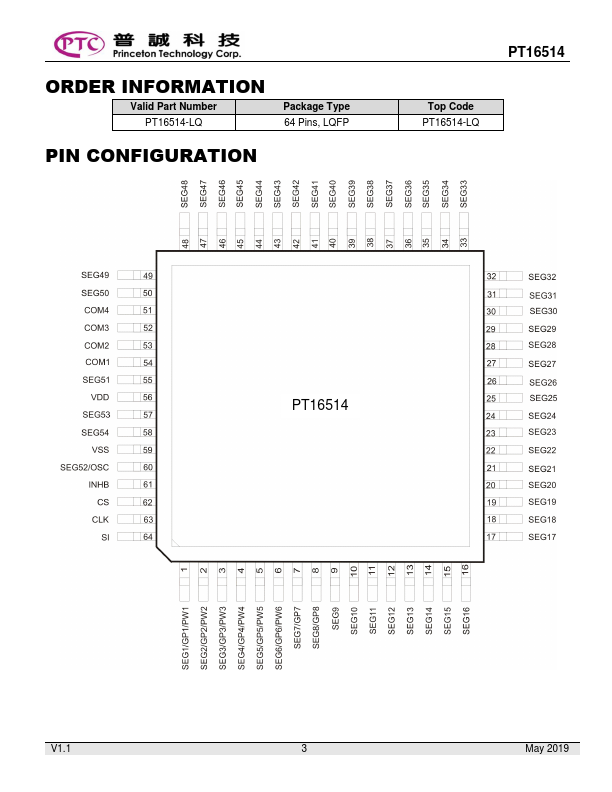

Additional preview pages of the PT16514 datasheet.

Product details

Description

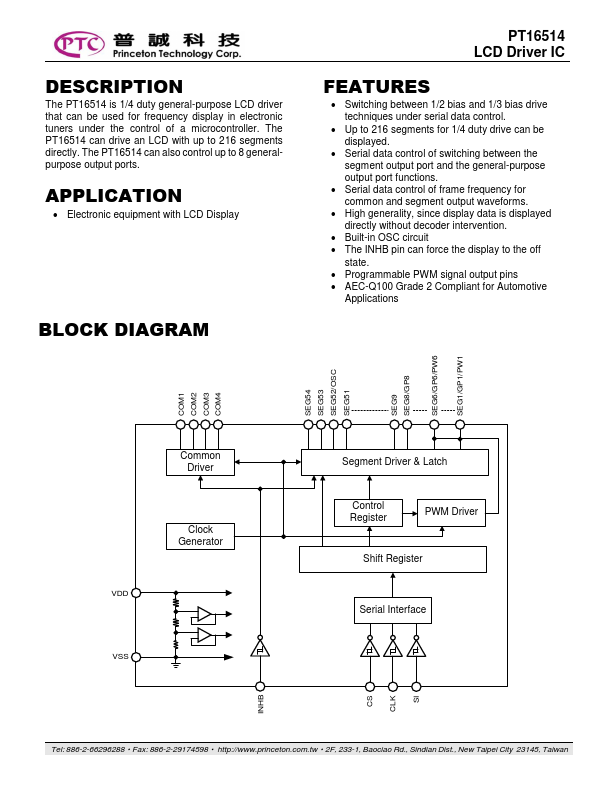

The PT16514 is 1/4 duty general-purpose LCD driver that can be used for frequency display in electronic tuners under the control of a microcontroller. Electronic equipment with LCD Display BLOCK DIAGRAM PT16514 LCD Driver IC

Features

Switching between 1/2 bias and 1/3 bias drive techniques under serial data control.
Up to 216 segments for 1/4 duty drive can be displayed.
Serial data control of switching between the segment output port and the general-purpose output port functions.
Serial data control of frame frequency for common and segment output waveforms.
High generality, since display data is displayed directly without decoder intervention.
Built-in OSC circuit.
The INHB pin can.
