PT16576 - LCD Driver

PTC

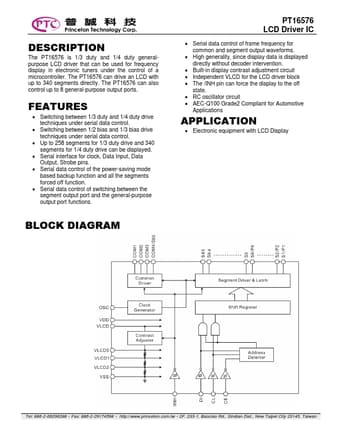

PT16576 Datasheet Preview — Preview of PT16576 PDF

Datasheet Details

Part number	PT16576
Manufacturer	PTC
File Size	757.82 KB
Description	LCD Driver
Datasheet	PT16576-PTC.pdf

PT16576 Product details

Description

The PT16576 is 1/3 duty and 1/4 duty generalpurpose LCD driver that can be used for frequency display in electronic tuners under the control of a microcontroller.

Features

Switching between 1/3 duty and 1/4 duty drive techniques under serial data control.
Switching between 1/2 bias and 1/3 bias drive techniques under serial data control.
Up to 258 segments for 1/3 duty drive and 340 segments for 1/4 duty drive can be displayed.
Serial interface for clock, Data Input, Data Output, Strobe pins.
Serial data control of the power-saving mode based backup function and all the segments forced off function.
Serial data control of switch.
