PT16580 - General Purpose LCD Driver

Product Overview

PTC

PT16580 General Purpose LCD Driver by PTC - Datasheet Preview — Datasheet preview – PT16580

Datasheet Details

Part number	PT16580
Manufacturer	PTC
File Size	354.93 KB
Description	General Purpose LCD Driver
Datasheet	PT16580 Datasheet

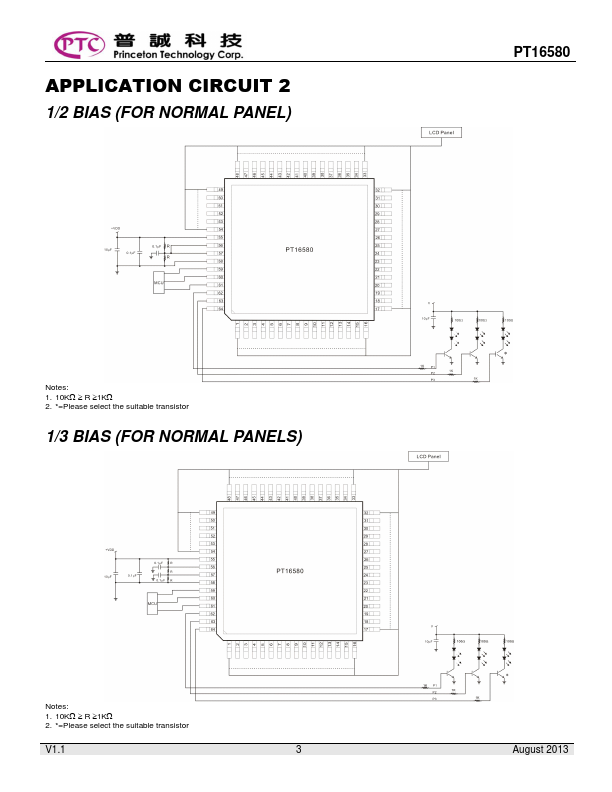

Additional preview pages of the PT16580 datasheet.

Product details

Description

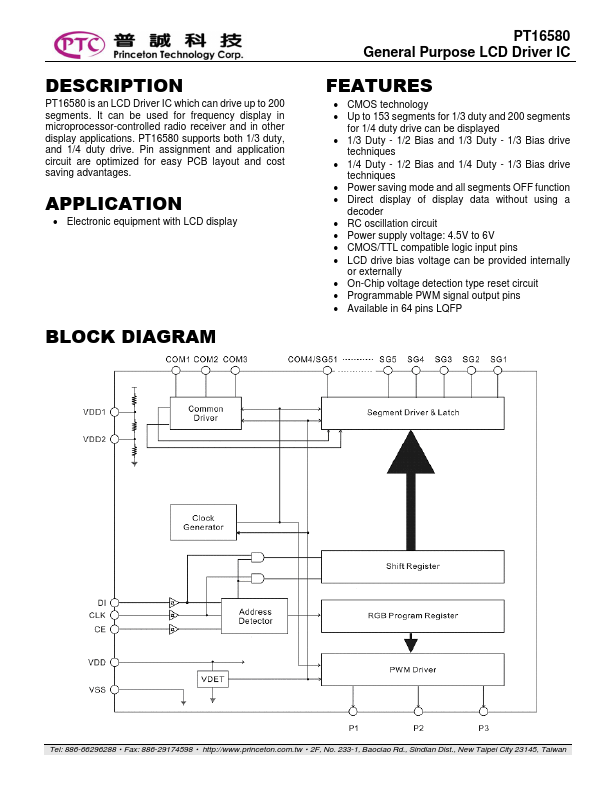

PT16580 is an LCD Driver IC which can drive up to 200 segments. Electronic equipment with LCD display BLOCK DIAGRAM PT16580 General Purpose LCD Driver IC

Features

CMOS technology.
Up to 153 segments for 1/3 duty and 200 segments for 1/4 duty drive can be displayed.
1/3 Duty - 1/2 Bias and 1/3 Duty - 1/3 Bias drive techniques.
1/4 Duty - 1/2 Bias and 1/4 Duty - 1/3 Bias drive techniques.
Power saving mode and all segments OFF function.
Direct display of display data without using a decoder.
RC oscillation circuit.
Power supply voltage: 4.5V to 6V.
CMOS/TTL compatible logic input pins.
LCD drive bias voltag.
