PT16752 Datasheet - PTC

Multi-Topology Automotive Headlight LED Driver

PT16752 Features

* Automotive AEC-Q100, Grade 1 (-40℃~+125℃) Qualified

* Input Voltage: 4.5V to 65V

* Output Voltage Range: 3V to 65V

* Low Input Offset Rail-to-Rail Current Sense Amplifier

* Better than ±4% LED Current Accuracy over -40°C to 140°C Junction Temperature Range

* High-Sid

PT16752 General Description

The PT16752 is a Headlight LED controller for automotive with high accuracy peak current mode. The device implements a fixed-frequency peak current mode control technique with programmable switching frequency, slope compensation, and soft-start timing. A unique spreadspectrum modulation (SSM) can re.

PT16752 Datasheet (2.03 MB)

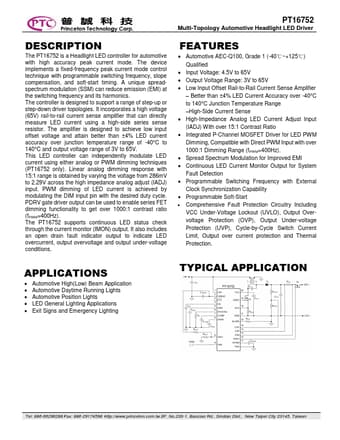

PT16752 Datasheet Preview — Preview of PT16752 PDF

Datasheet Details

Part number:

PT16752

Manufacturer:

PTC

File Size:

2.03 MB

Description:

Multi-topology automotive headlight led driver.
