PT6955

LED Driver

PT6955 Features

* CMOS Technology

* Low Power Consumption

* 8-Step Dimming Circuitry

* Serial Interface for Clock, Data Input, Strobe Pins

* Available in 24-pin, SO Package APPLICATION

* Micro-computer Peripheral Device PT6955 v1.2 Page 1 Updated December 2001 Pr

PT6955 General Description

Tel : 886-2-29162151 Fax: 886-2-29174598 URL: http://www.princeton.com.tw PT6955 PT6955 is an LED Controller driven on a 1/4 to 1/7 duty factor. Twelve/nine segment output lines, 4 to 7 grid output lines, one display memory, control circuit are all incorporated into a single chip to build a highl.

PT6955 Datasheet (51.06 KB)

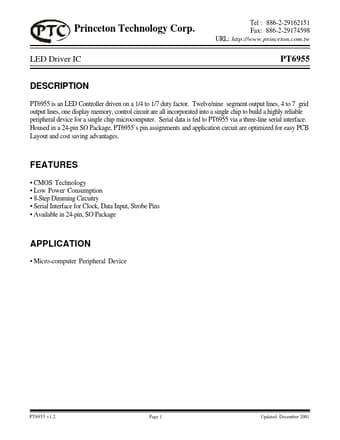

Preview of PT6955 PDF

Datasheet Details

Part number:

PT6955

Manufacturer:

PTC

File Size:

51.06 KB

Description:

Led driver.
