PT6958

LED Driver

Princeton Technology Corp

PT6958 Features

* CMOS Technology

* Low Power Consumption

* Key Scanning (6 x 4 matrix)

* 8-Step Dimming Circuitry

* Serial Interface for Clock, Data Input, Data Output, Strobe Pins

* Available in 28-pin, SO Package APPLICATION

* Micro-computer Peripheral Dev

PT6958 General Description

PT6958 is an LED Controller driven on a 1/6 duty factor. Ten segment output lines, 5 grid output lines, one display memory, control circuit, key scan circuit are all incorporated into a single chip to build a highly reliable peripheral device for a single chip microcomputer. Serial data is fed to PT.

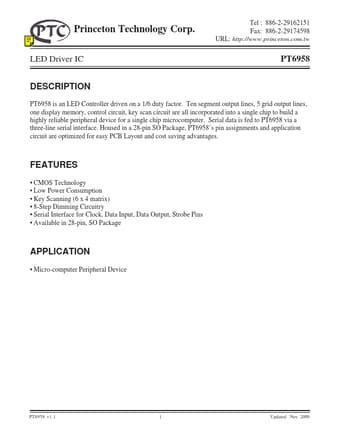

PT6958 Datasheet (37.57 KB)

PT6958 Datasheet Preview — Preview of PT6958 PDF

Datasheet Details

Part number:

PT6958

Manufacturer:

Princeton Technology Corp

File Size:

37.57 KB

Description:

Led driver.
