PT6956 Datasheet - Princeton Technology Corp

12 Bits Shift Register Latched Constant Current Driver

PT6956 Features

* CMOS Technology

* Serial I/O, Parallel Output Interface

* Constant Current Output (adjustable by external resistor for 50mA max.)

* Cascade Extension

* Available in 20 - pin, SO Package APPLICATION

* LED Panel Driver PT6956 v1.1 1 Updated Nov. 20

PT6956 General Description

PT6956 is a 12 bits shift register latched constant current driver IC utilizing CMOS Technology used to unify the luminance of the LED panel. It is equipped with serial I/O interface for multiple chips, cascading and serial input, parallel output for LED Interface. Pin assignments and application ci.

PT6956 Datasheet (66.49 KB)

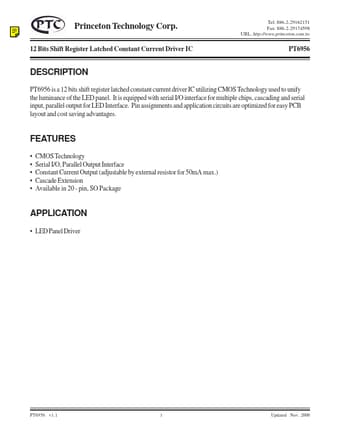

PT6956 Datasheet Preview — Preview of PT6956 PDF

Datasheet Details

Part number:

PT6956

Manufacturer:

Princeton Technology Corp

File Size:

66.49 KB

Description:

12 bits shift register latched constant current driver.
Princeton Technology Corp. 12 Bits Shift Register Latched Constant Current Driver IC Tel: 886-2-29162151 Fax: 886-2-29174598 URL: http://www.princeto.
