PT6957 16 Bits Shift Register Latched Constant Current Driver

PT6957 is an LED Driver IC utilizing CMOS Technology used to unify the luminance of the LED panel. It is equipped with 16 bits Shift Register and Latched Constant Current Driver, Serial I/O interface for multiple chips, Cascading and Serial Input, Parallel Output for LED Interface. Pin assignments a.

PT6957 Features

* CMOS Technology

* Serial I/O, Parallel Output Interface

* Cascade Extension

* Constant Current Output (adjustable by external resistor for 0 to 30mA)

* Output-enabled Control (ENA, ENB)

* Available in 28-pin, SO Package APPLICATION

* LED Pan

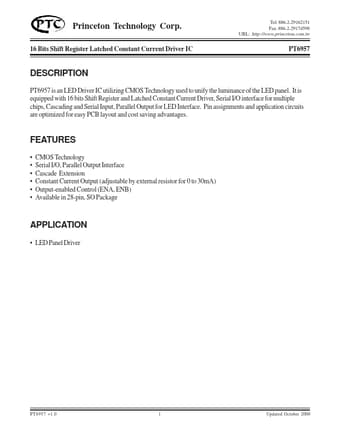

PT6957_PrincetonTechnologyCorp.pdf
