PT6959

Led Driver

PT6959 Features

* CMOS Technology

* Low Power Consumption

* 8-Step Dimming Circuitry

* Serial Interface for Clock, Data Input, Strobe Pins

* Available in 28-pin, SO Package APPLICATION

* Micro-computer Peripheral Device PT6959 v1.3 Page 1 Updated December 2001 www.Data

PT6959 General Description

Tel : 886-2-29162151 Fax: 886-2-29174598 URL: http://www.princeton.com.tw PT6959 PT6959 is an LED Controller driven on a 1/4 to 1/7 duty factor. Fourteen to eleven segment output lines, 4 to 7 grid output lines, one display memory, control circuit are all incorporated into a single chip to build .

PT6959 Datasheet (467.45 KB)

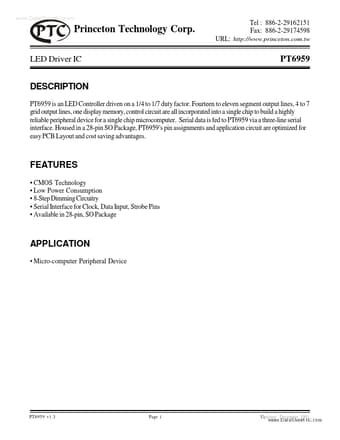

Preview of PT6959 PDF

Datasheet Details

Part number:

PT6959

Manufacturer:

Princeton Lightwave

File Size:

467.45 KB

Description:

Led driver.
