TSP120B BI-DIRECTIONAL THYRISTOR SURGE PROTECTOR

TSP120B Description

TSP058B - TSP320B Breakover Voltage Max.VBO @ IBO V 77 88 98 130 160 180 220 260 300 350 400 (3,5,6) On-State Voltage Max.V T @ 1A V 5 5 5 5 5 5 5.

TSP120B Features

* Protects by limiting voltages and shunting surge currents away from sensitive circuits

TSP120B Applications

* such as line cards, modems, PBX, FAX, LAN,VHDSL
* Helps meet standards such as GR1089, ITU K.20, IEC950, UL1459&50, FCC part 68
* Low capacitance, High surge (A, B, C rating available), precise voltage limiting, Long life THYRISTOR DO-15 SUMMARY ELECTRICAL CHARACTERISTICS Rated Repe

📥 Download Datasheet

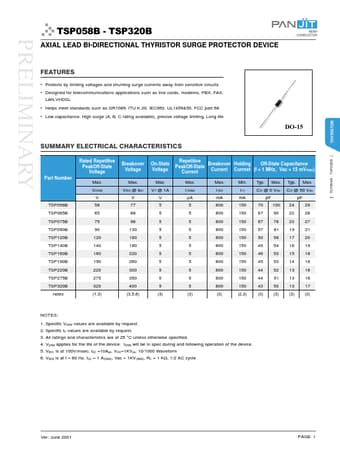

Preview of TSP120B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TSP120B
Manufacturer
Pan Jit International Inc.
File Size
117.10 KB
Datasheet
TSP120B_PanJitInternationalInc..pdf
Description
BI-DIRECTIONAL THYRISTOR SURGE PROTECTOR
