TSP120A BI-DIRECTIONAL THYRISTOR SURGE PROTECTOR

TSP120A Description

DATA SHEET TSP058A~TSP320A AXIAL LEAD BI-DIRECTIONAL THYRISTOR SURGE PROTECTOR DEVICE .

TSP120A Features

* Protects by limiting voltages and shunting surge currents away from sensitive circuits 1.0(25.4) MIN. DO-15 .034(.86) .028(.71) Unit: inch ( mm )

TSP120A Applications

* such as line cards, modems, PBX, FAX, LAN,VHDSL
* Helps meet standards such as GR1089, ITU K.20, IEC950, UL1459&50, FCC part 68
* Low capacitance, High surge (A, B, C rating available), precise voltage limiting, Long life MECHANICAL DATA
* Case: JEDEC DO-15 molded plastic

📥 Download Datasheet

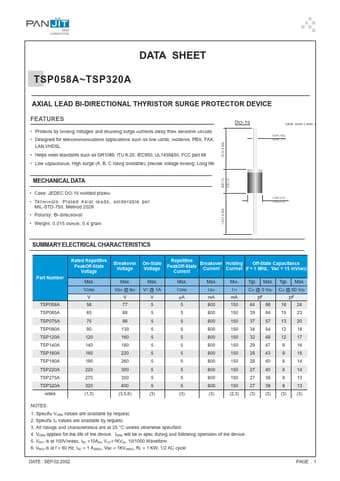

Preview of TSP120A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TSP120A
Manufacturer
Pan Jit International Inc.
File Size
87.89 KB
Datasheet
TSP120A_PanJitInternationalInc..pdf
Description
BI-DIRECTIONAL THYRISTOR SURGE PROTECTOR
