TSP12N60M Datasheet, Mosfet, Truesemi

TSP12N60M Features

  • Mosfet - 12A, 600V, RDS(on) = 0.7Ω@VGS = 10 V - Low gate charge ( typical 52 nC) - High ruggedness - Fast switching - 100% avalanche tested - Improved dv/dt capability Absolute Maximum Rating

PDF File Details

Part number:

TSP12N60M

Manufacturer:

Truesemi

File Size:

346.97kb

Download:

📄 Datasheet

Description:

600v n-channel mosfet. This Power MOSFET is produced using True semi‘s advanced planar stripe DMOS technology. This advanced technology has been especially

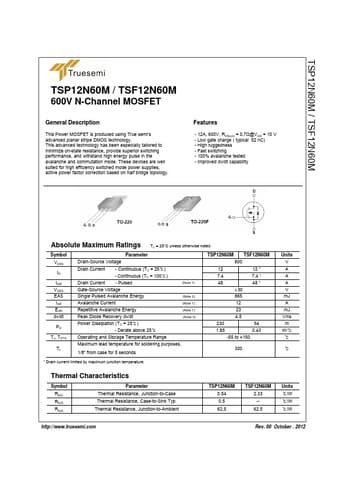

Datasheet Preview: TSP12N60M 📥 Download PDF (346.97kb)
Page 2 of TSP12N60M Page 3 of TSP12N60M
