TSP10N65M Datasheet - Truesemi

N-Channel MOSFET

TSP10N65M Features

* 10.0A,650V,Max.RDS(on)=1.0Ω @ VGS =10V

* Low gate charge(typical 48nC)

* High ruggedness

* Fast switching

* 100% avalanche tested

* Improved dv/dt capability Absolute Maximum Ratings TC=25℃ unless otherwise specified Symbol VDSS VGS ID IDM EAS EAR

TSP10N65M General Description

This Power MOSFET is produced using Truesemi‘s advanced planar stripe DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices a.

TSP10N65M Datasheet (1.22 MB)

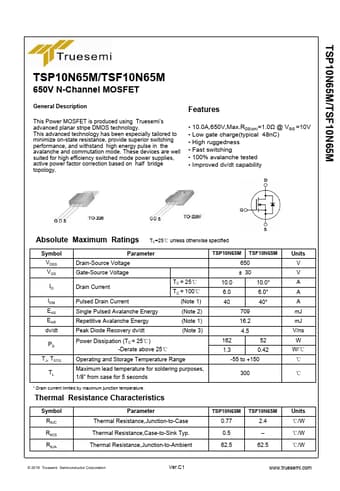

TSP10N65M Datasheet Preview — Preview of TSP10N65M PDF

Datasheet Details

Part number:

TSP10N65M

Manufacturer:

Truesemi

File Size:

1.22 MB

Description:

N-channel mosfet.
