TSP10H60S, TSP10H45S Datasheet - Taiwan Semiconductor

TSP10H60S Trench Schottky Rectifier

Green compound AVERAGE FORWARD CURRENT (A) FIG.1 FORWARD CURRENT DERATING CURVE 12 10 8 6 4 2 WITH HEATSINK 30mm x 30mm 0 4 oz. pad PCB 50 75 100 125 LEAD TEMPERATURE (oC) 150 INSTANTANEOUS FORWARD CURRENT (A) FIG.2 TYPICAL FORWARD CHARACTERISTICS 100 TSP10H45S 10 TJ=150oC TJ=125oC 1 0.

TSP10H60S Features

* - Patented Trench Schottky technology - Excellent high temperature stability - Low forward voltage - Low power loss/ high efficiency - High forward surge capability - Ideal for automated placement - Moisture sensitivity level: level 1, per J-STD-020 - Compliant to RoHS Directive 2011/65/EU and in ac

TSP10H45S-TaiwanSemiconductor.pdf

This datasheet PDF includes multiple part numbers: TSP10H60S, TSP10H45S. Please refer to the document for exact specifications by model.

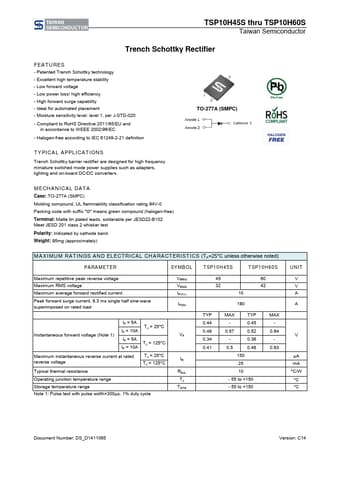

TSP10H60S Datasheet Preview Page 2 TSP10H60S Datasheet Preview Page 3

Datasheet Details

Part number:

TSP10H60S, TSP10H45S

Manufacturer:

Taiwan Semiconductor

File Size:

208.57 KB

Description:

Trench schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: TSP10H60S, TSP10H45S.
Please refer to the document for exact specifications by model.
