BAV170 LOW LEAKAGE SWITCHING DIODES

BAV170 Description

BAS116/BAW156/BAV170/BAV199 SURFACE MOUNT, LOW LEAKAGE SWITCHING DIODES VOLTAGE 100 Volts POWER 250mWatts .

BAV170 Features

* Suface mount package ideally suited for automatic insertion.
* Very low leakage current. 2pA typical at VR=75V.
* Low capacitance. 2pF max at VR=0V, f=1MHz
* In compliance with EU RoHS 2002/95/EC directives MECHANICAL DATA
* Case: SOT-23 plastic
* T

📥 Download Datasheet

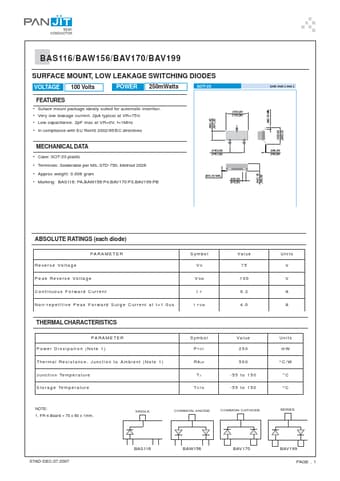

Preview of BAV170 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAV170
Manufacturer
Pan Jit International
File Size
129.90 KB
Datasheet
BAV170-PanJitInternational.pdf
Description
LOW LEAKAGE SWITCHING DIODES
