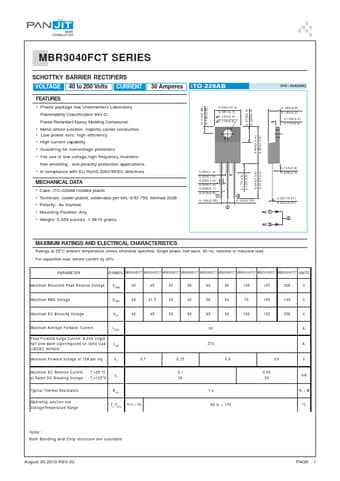

MBR3040FCT SERIES
SCHOTTKY BARRIER RECTIFIERS VOLTAGE 40 to 200 Volts CURRENT 30 Amperes
FEATURES • Plastic package has Underwriters Laboratory
Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound. • Metal silicon junction, majority carrier conduction • Low power loss, high efficiency. • High current capability • Guardring for overvoltage protection • For use in low voltage,high frequency inverters free wheeling , and polarlity protection applications. • In compliance with EU RoHS 2002/95/EC directives
MECHANICAL DATA • Case: ITO-220AB molded plastic • Terminals: solder plated, solderable per MIL-STD-750, Method 2026 • Polarity: As marked. • Mounting Position: Any • Weight: 0.055 ounces, 1.5615 grams.
0.112(2.85) 0.100(2.55)
0.272(6.9) 0.248(6.3)
0.406(10.3) 0.
