2SB0709A - Silicon PNP epitaxial planar type Transistor

Product Overview

Panasonic Semiconductor

Part number	2SB0709A
Manufacturer	Panasonic Semiconductor
File Size	98.05 KB
Description	Silicon PNP epitaxial planar type Transistor
Datasheet	2SB0709A Datasheet

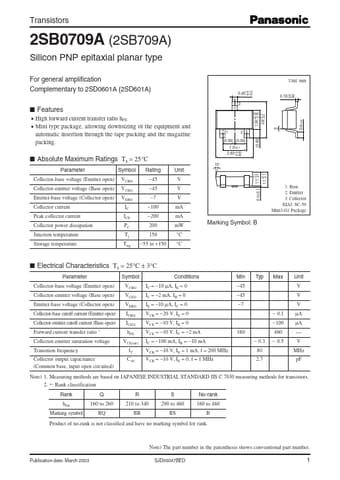

Additional preview pages of the 2SB0709A datasheet.

s.
High forward current transfer ratio hFE.
Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. Unit: mm 0.40+0.10.
0.05 3 1.50+0.25.
0.05 2.8+0.2.
0.3 0.16+0.10.
0.06 1 2 (0.65) (0.95) (0.95) 1.9±0.1 2.90+0.20.
0.05 10˚.
Absolute Maximum Ratings Ta = 25°C Parameter Collector-base voltage (Emitter open) Collector-emitter voltage (Base open) Emitter-ba.
