2SB0774 - Silicon PNP epitaxial planar type Transistors

2SB0774 Description

Transistor 2SB0774 (2SB774) Silicon PNP epitaxial planer type For low-frequency amplification I .

2SB0774 Features

* G High emitter to base voltage VEBO. G Protective diodes and resistances between emitter and base can be omitted. 5.1±0.2 5.0±0.2 Unit: mm 4.0±0.2 13.5±0.5 I Absolute Maximum Ratings (Ta=25˚C) Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collect

📥 Download Datasheet

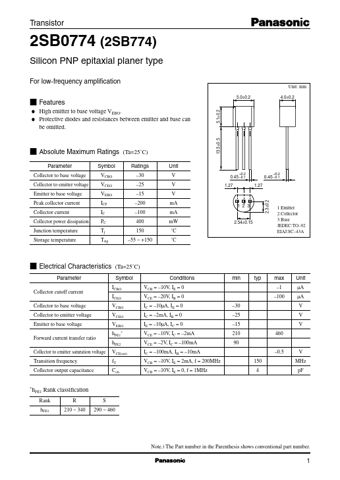

Preview of 2SB0774 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SB0774
Manufacturer
Panasonic
File Size
57.86 KB
Datasheet
2SB0774-Panasonic.pdf
Description
Silicon PNP epitaxial planar type Transistors
