* q q q Low collector to emitter saturation voltage VCE(sat) High-speed switching N type package enabling direct soldering of the radiating fin to the printed circuit board, etc. of small electronic equipment. 1.5±0.1 1.5max. 1.1max. 10.5min. 2.0 0.8±0.1 0.5max. s 2.54±0.3 Absolute Maximum
2SB936
Panasonic Semiconductor
58.90 KB
Pnp transistor.
Power Transistors

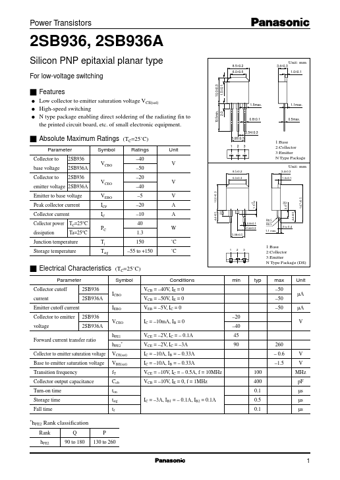

2SB936, 2SB936A
Silicon PNP epitaxial planar type
For low-voltage switching
10.0±0.3
8.5±0.2 6.0±0.5 3.4±0.3
Unit: mm
1.0±0.1
s F.
