* q q q q q High-speed switching High collector to base voltage VCBO Wide area of safe operation (ASO) Satisfactory linearity of foward current transfer ratio hFE Full-pack package which can be installed to the heat sink with one screw (TC=25˚C) Ratings 800 900 800 900 500 8 3.0 1.5 0.5 25 2 150
2SC3970A
Panasonic Semiconductor
60.10 KB
Silicon npn transistor.
Power Transistors

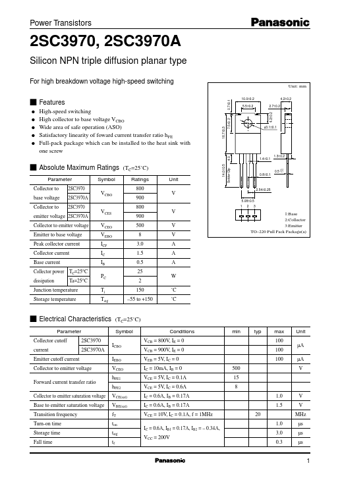

2SC3970, 2SC3970A
Silicon NPN triple diffusion planar type
For high breakdown voltage high-speed switching
