2SC3971A Silicon NPN Transistor

📥 Download Datasheet  Datasheet Preview Page 1

Description

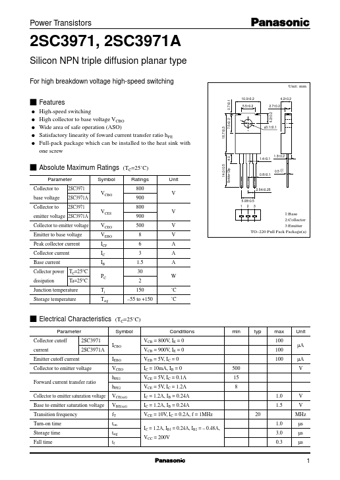

Power Transistors 2SC3971, 2SC3971A Silicon NPN triple diffusion planar type For high breakdown voltage high-speed switching 0.7±0.1 Unit: mm 10.0±0.

📥 Download Datasheet

Preview of 2SC3971A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
2SC3971A
Manufacturer
Panasonic Semiconductor
File Size
60.14 KB
Datasheet
2SC3971A_PanasonicSemiconductor.pdf
Description
Silicon NPN Transistor

Features

* q q q q q High-speed switching High collector to base voltage VCBO Wide area of safe operation (ASO) Satisfactory linearity of foward current transfer ratio hFE Full-pack package which can be installed to the heat sink with one screw (TC=25˚C) Ratings 800 900 800 900 500 8 6 3 1.5 30 2 150
