2SC3971 Silicon NPN Transistor

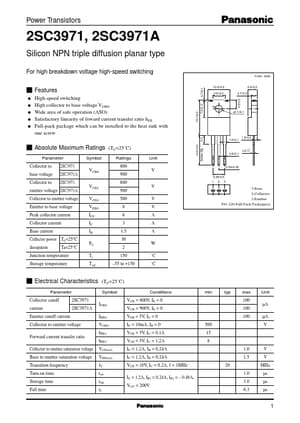

Power Transistors 2SC3971, 2SC3971A Silicon NPN triple diffusion planar type For high breakdown voltage high-speed switching 0.7±0.1 Unit: mm 10.0±0.

2SC3971_PanasonicSemiconductor.pdf

2SC3971 Datasheet Preview — Preview of 2SC3971 PDF

Datasheet Details

Part number:

2SC3971

Manufacturer:

Panasonic Semiconductor

File Size:

60.14 KB

Description:

Silicon NPN Transistor

Features

* q q q q q High-speed switching High collector to base voltage VCBO Wide area of safe operation (ASO) Satisfactory linearity of foward current transfer ratio hFE Full-pack package which can be installed to the heat sink with one screw (TC=25˚C) Ratings 800 900 800 900 500 8 6 3 1.5 30 2 150
