2SD2133 - Silicon NPN Transistor

Product Overview

Panasonic Semiconductor

Part number	2SD2133
Manufacturer	Panasonic Semiconductor
File Size	96.03 KB
Description	Silicon NPN Transistor
Datasheet	2SD2133 Datasheet
Additional preview pages of the 2SD2133 datasheet.

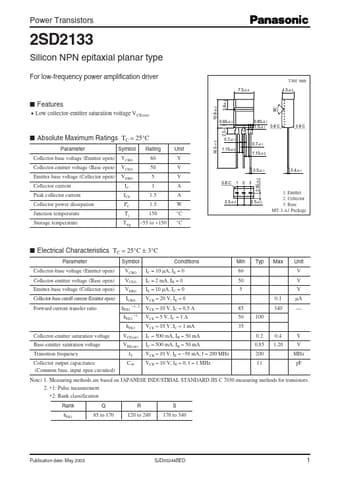

0.8 C 0.7±0.1 0.7±0.1 1.15±0.2 1.15±0.2 0.5±0.1 0.8 C 1 2 3 2.05±0.2 0.4±0.1 2.5±0.2 2.5±0.2 1: Emitter 2: Collector 3: Base MT-3-A1 Package.
Electrical Characteristics TC = 25°C ± 3°C Parameter Collector-base voltage (Emitter open) Collector-emitter voltage (Base open) Emitter-base voltage (Collector open) Collector-base cutoff current (Emitter open) Forward current transfer ratio Symbol VCBO VCEO VEBO ICBO hFE1.
1, 2 hFE2 Collector-emitter saturation voltage Base-emitter satura.
