2SD2131 Datasheet - Toshiba Semiconductor

2SD2131 - Silicon NPN Transistor

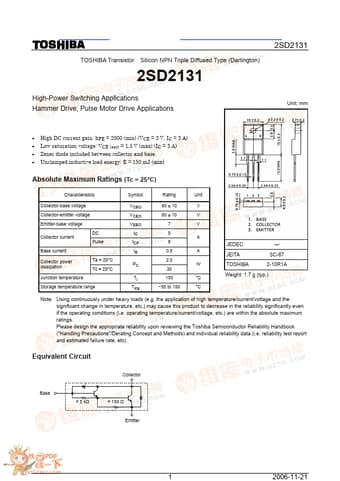

TOSHIBA Transistor Silicon NPN Triple Diffused Type (Darlington) 2SD2131 2SD2131 High-Power Switching Applications Hammer Drive, Pulse Motor Drive Applications Unit: mm High DC current gain: hFE = 2000 (min) (VCE = 3 V, IC = 3 A) Low saturation voltage: VCE (sat) = 1.5 V (max) (IC = 3 A) Zener diode included between collector and base.

Unclamped inductive load energy: E = 150 mJ (min) Absolute Maximum Ratings (Tc = 25°C) Characteristics Symbol Rati

2SD2131_ToshibaSemiconductor.pdf

Preview of 2SD2131 PDF
2SD2131 Datasheet Preview Page 2 2SD2131 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD2131

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

266.61 KB

Description:

Silicon npn transistor.
