2SD213 - NPN Transistor

Product Overview

📥 Download Datasheet

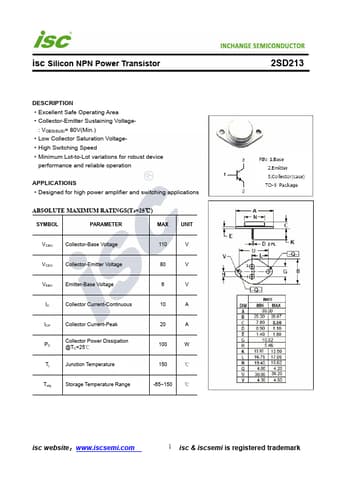

Datasheet preview – 2SD213

Datasheet Details

Part number 2SD213
Manufacturer INCHANGE
File Size 189.42 KB
Description NPN Transistor
Datasheet download datasheet 2SD213 Datasheet
Additional preview pages of the 2SD213 datasheet.

Product details

Description

Excellent Safe Operating Area Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 80V(Min.) Low Collector Saturation Voltage High Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for high power amplifier and switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER MAX UNIT VCBO Collector-Base Voltage 110 V VCEO Collector-Emitter Voltage 80 V VEBO Emitter-Base Voltag
