2SD2104 Datasheet - INCHANGE

2SD2104 NPN Transistor

*Collector-Emitter Breakdown Voltage- : V(BR)CEO= 120V(Min) *Collector-Emitter Saturation Voltage- : VCE(sat)= 1.5V(Max) @IC= 4A *High DC Current Gain : hFE= 1000(Min) @ IC= 4A, VCE= 3V *Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS .

2SD2104-INCHANGE.pdf

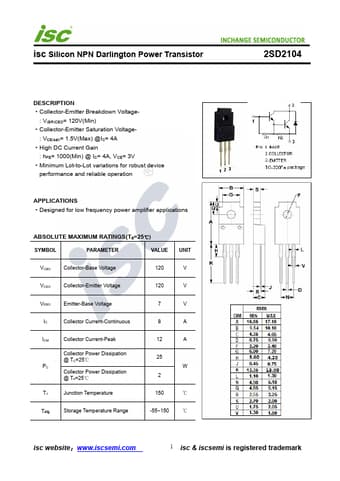

Preview of 2SD2104 PDF
2SD2104 Datasheet Preview Page 2

Datasheet Details

Part number:

2SD2104

Manufacturer:

INCHANGE

File Size:

194.10 KB

Description:

Npn transistor.
