2SD2105 Datasheet - Hitachi

2SD2105 Silicon NPN Transistor

2SD2105 Silicon NPN Triple Diffused Application Low frequency power amplifier Outline TO-220FM 2 1 1. Base 2. Collector 3. Emitter ID 1.5 kΩ (Typ) 130 Ω (Typ) 3 12 3 Free Datasheet http://www.nDatasheet.com 2SD2105 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Symbol VCBO VCEO VEBO IC IC(peak) PC PC Junction temperature Storage temperature C .

2SD2105-Hitachi.pdf

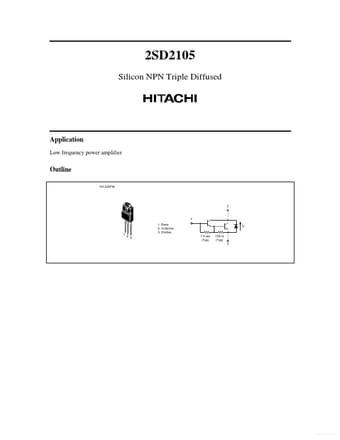

Preview of 2SD2105 PDF
2SD2105 Datasheet Preview Page 2 2SD2105 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD2105

Manufacturer:

Hitachi

File Size:

45.95 KB

Description:

Silicon npn transistor.
