2SD2106 Datasheet - Hitachi Semiconductor

2SD2106 Silicon NPN Transistor

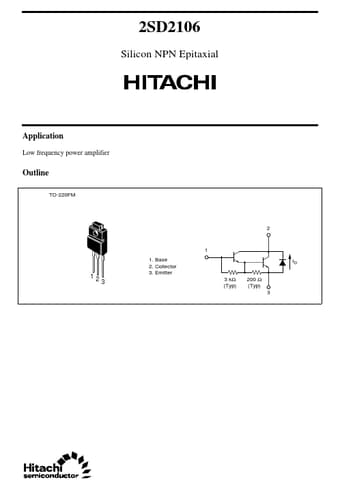

2SD2106 Silicon NPN Epitaxial Application Low frequency power amplifier Outline TO-220FM 2 1 1. Base 2. Collector 3. Emitter ID 3 kΩ (Typ) 200 Ω (Typ) 3 12 3 2SD2106 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Symbol VCBO VCEO VEBO IC I C(peak) PC PC Junction temperature Storage temperature Note: 1. Value at TC = 25°C. Tj Tstg 1 Rating 120.

2SD2106_HitachiSemiconductor.pdf

Preview of 2SD2106 PDF
2SD2106 Datasheet Preview Page 2 2SD2106 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD2106

Manufacturer:

Hitachi Semiconductor

File Size:

35.77 KB

Description:

Silicon npn transistor.
