2SD211 - SILICON POWER TRANSISTOR

Product Overview

SavantIC

Datasheet Details

Part number	2SD211
Manufacturer	SavantIC
File Size	136.21 KB
Description	SILICON POWER TRANSISTOR
Datasheet	2SD211 Datasheet
Additional preview pages of the 2SD211 datasheet.

Product details

Description

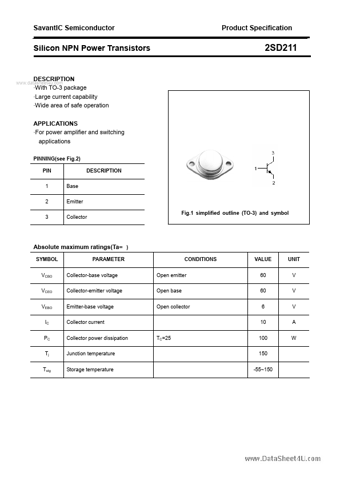

With TO-3 package Large current capability Wide area of safe operation APPLICATIONS For power amplifier and switching applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature TC=25 C
