Part number:
2SD2114K
Manufacturer:
File Size:
1.31 MB
Description:
High-current gain medium power transistor.

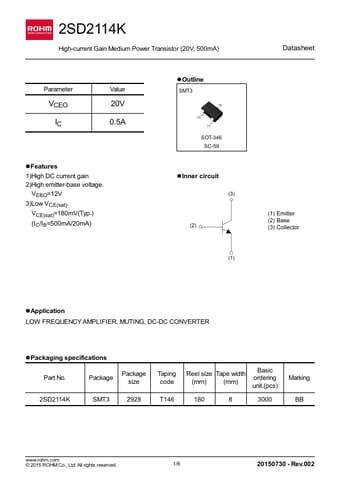

* 1)High DC current gain 2)High emitter-base voltage. VEBO=12V 3)Low VCE(sat). VCE(sat)=180mV(Typ.) (IC/IB=500mA/20mA) lOutline SMT3 SOT-346 SC-59 lInner circuit Datasheet lApplication LOW FREQUENCY AMPLIFIER, MUTING, DC-DC CONVERTER lPackaging specifications
2SD2114K
1.31 MB
High-current gain medium power transistor.
📁 Related Datasheet
2SD2114 - NPN Transistor
(JCST)
JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO.,LTD
SOT-23 Plastic-Encapsulate Transistors
2SD2114 TRANSISTOR (NPN)
FEATURES z High DC current gain. z.
2SD2114 - NPN Transistor
(SeCoS)
Elektronische Bauelemente
2SD2114
0.5A , 25V NPN Plastic-Encapsulate Transistor
RoHS Compliant Product A suffix of “-C” specifies halogen & lead-fre.
2SD2114K - Power Transistor
(Kexin)
SMD Type
TransistIoCrs
Power Transistor 2SD2114K
Features
High DC current gain. High emitter-base voltage. Low VCE (sat).
