2SD2112 - Power Transistor

Product Overview

📥 Download Datasheet

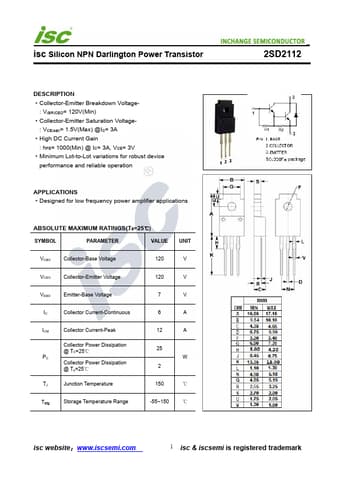

Datasheet preview – 2SD2112

Datasheet Details

Part number 2SD2112
Manufacturer Inchange Semiconductor
File Size 197.50 KB
Description Power Transistor
Datasheet download datasheet 2SD2112 Datasheet
Additional preview pages of the 2SD2112 datasheet.

Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 120V(Min) Collector-Emitter Saturation Voltage- : VCE(sat)= 1.5V(Max) @IC= 3A High DC Current Gain : hFE= 1000(Min) @ IC= 3A, VCE= 3V Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for low frequency power amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 120 V VCEO Collector-Emitter Voltage 1
