Part number:
2SD2116
Manufacturer:
Sanyo Semicon Device
File Size:
71.76 KB
Description:
Npn epitaxial planar silicon transistor.
* Darlington connection.
* High DC current gain.

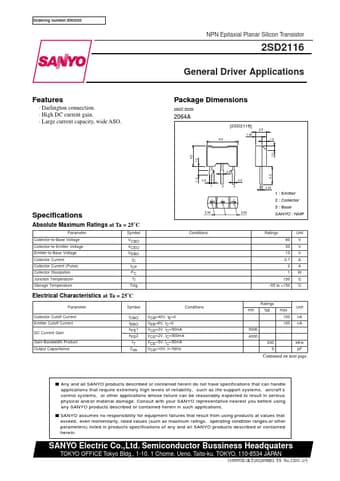

* Large current capacity, wide ASO. NPN Epitaxial Planar Silicon Transistor 2SD2116 General Driver Applications Package Dimensions unit:mm 2064A [2SD2116] 2.5 1.45 6.9 1.0 4.0 1.0 4.5 1.0 0.9 1 Specifications Absolute Maximum Ratings
2SD2116
Sanyo Semicon Device
71.76 KB
Npn epitaxial planar silicon transistor.
