2SD2111
Hitachi Semiconductor
59.03 KB
Silicon npn transistor.
www.DataSheet4U.com

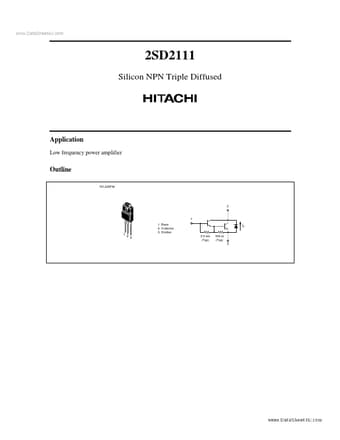

2SD2111
Silicon NPN Triple Diffused
Application
Low frequency power amplifier
Outline
TO-220FM
2
1 1. Base 2. Collector 3. Em.
