2SD2114 - NPN Transistor

2SD2114 Description

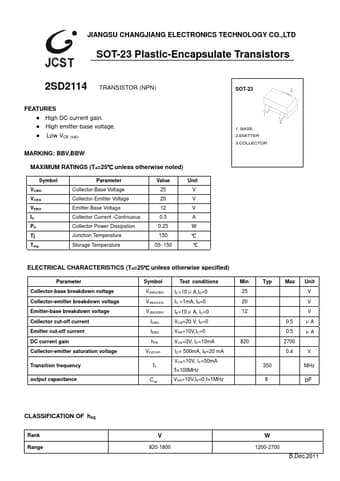

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO.,LTD SOT-23 Plastic-Encapsulate Transistors 2SD2114 TRANSISTOR (NPN) .

2SD2114 Features

* z High DC current gain. z High emitter-base voltage. z Low VCE (sat). MARKING: BBV,BBW MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC Tj Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Power

📥 Download Datasheet

Preview of 2SD2114 PDF

Datasheet Details

Part number
2SD2114
Manufacturer
JCST
File Size
259.51 KB
Datasheet
2SD2114-JCST.pdf
Description
NPN Transistor
