2SD2120 - NPN Epitaxial Planar Silicon Transistor

Product Overview

Sanyo Semicon Device

Part number	2SD2120
Manufacturer	Sanyo Semicon Device
File Size	69.83 KB
Description	NPN Epitaxial Planar Silicon Transistor
Datasheet	2SD2120 Datasheet

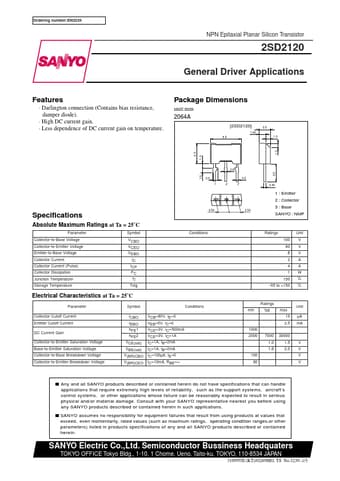

Additional preview pages of the 2SD2120 datasheet.

Darlington connection (Contains bias resistance, damper diode).
High DC current gain.
Less dependence of DC current gain on temperature. Package Dimensions unit:mm 2064A [2SD2120] 2.5 1.45 6.9 1.0 4.0 1.0 4.5 1.0 0.9 1 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature.
