2SD2121 Datasheet - Hitachi Semiconductor

2SD2121 Silicon NPN Epitaxial Planar Transistor

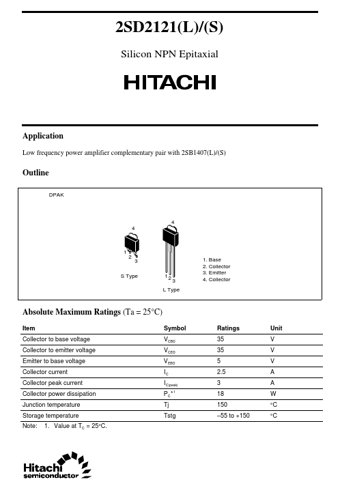

2SD2121(L)/(S) Silicon NPN Epitaxial Application Low frequency power amplifier complementary pair with 2SB1407(L)/(S) Outline DPAK 4 4 1 2 3 12 S Type 3 1. Base 2. Collector 3. Emitter 4. Collector L Type Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Note: 1. Value at TC = 25°C. Symbol VCBO VCEO VEBO IC.
