2SD2122S Datasheet - Hitachi Semiconductor

2SD2122S Silicon NPN Transistor

2SD2122(L)/(S), 2SD2123(L)/(S) Silicon NPN Epitaxial Application Low frequency power amplifier complementary pair with 2SB1409(L)/(S) Outline DPAK 4 4 1 2 3 12 S Type 3 1. Base 2. Collector 3. Emitter 4. Collector L Type 2SD2122(L)/(S), 2SD2123(L)/(S) Absolute Maximum Ratings (Ta = 25°C) Ratings Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperatur.

2SD2122S_HitachiSemiconductor.pdf

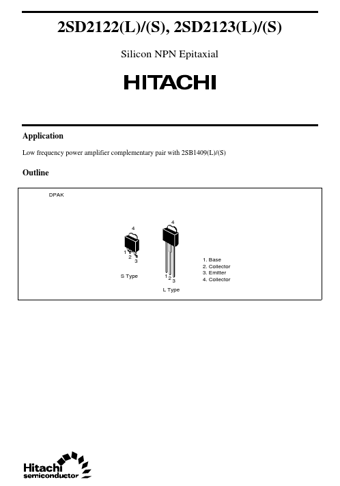

Preview of 2SD2122S PDF

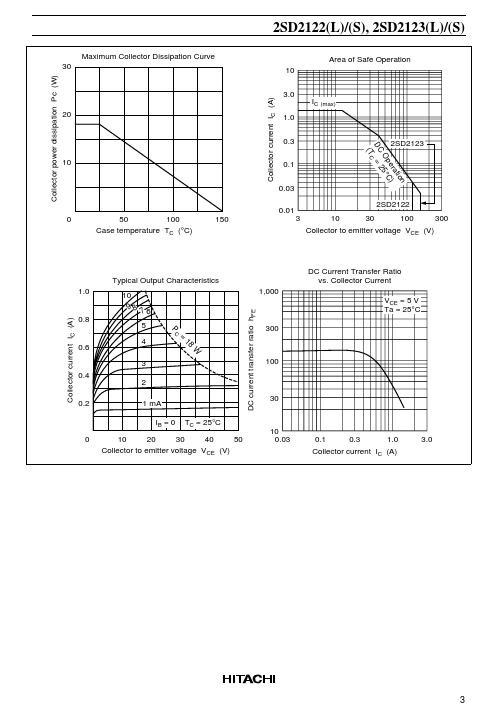

2SD2122S Datasheet Preview Page 2 2SD2122S Datasheet Preview Page 3

Datasheet Details

Part number:

2SD2122S

Manufacturer:

Hitachi Semiconductor

File Size:

34.69 KB

Description:

Silicon npn transistor.
