2SD2101 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SD2101

Manufacturer:

SavantIC

File Size:

141.47kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

  • With TO-220Fa package
  • DARLINGTON APPLICATIONS

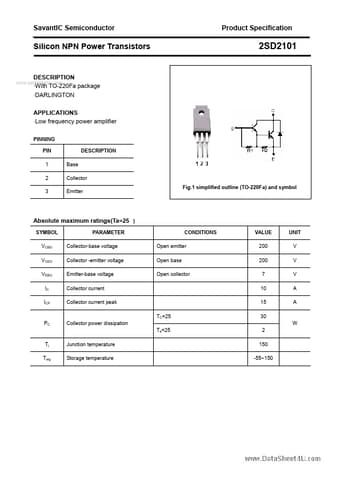

  • Low frequency power amplifier PINNING PIN 1 2 3 Base Collect

  • Datasheet Preview: 2SD2101 📥 Download PDF (141.47kb)
    Page 2 of 2SD2101 Page 3 of 2SD2101

    2SD2101 Application

    • Applications
    • Low frequency power amplifier PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220Fa) and symbol DESCRIPT
