2SD2107 Silicon NPN Transistor

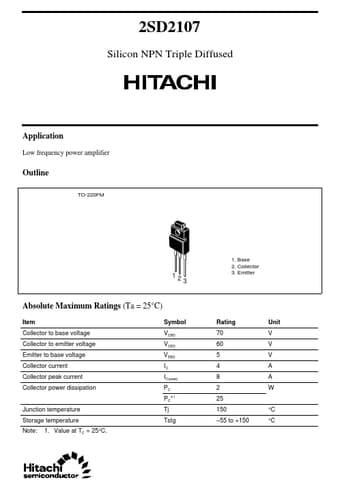

2SD2107 Silicon NPN Triple Diffused Application Low frequency power amplifier Outline TO-220FM 12 3 1. Base 2. Collector 3. Emitter Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Symbol VCBO VCEO VEBO IC I C(peak) PC PC Junction temperature Storage temperature Note: 1. Value at TC = 25°C. Tj Tstg 1 Rating 70 60 5 4 8 2 25 150 55 to +1.
