2SD2121L Datasheet - Hitachi Semiconductor

2SD2121L Silicon NPN Epitaxial Planar Transistor

2SD2121(L)/(S) Silicon NPN Epitaxial Application Low frequency power amplifier complementary pair with 2SB1407(L)/(S) Outline DPAK 4 4 1 2 3 12 S Type 3 1. Base 2. Collector 3. Emitter 4. Collector L Type Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Note: 1. Value at TC = 25°C. Symbol VCBO VCEO VEBO IC.

2SD2121L_HitachiSemiconductor.pdf

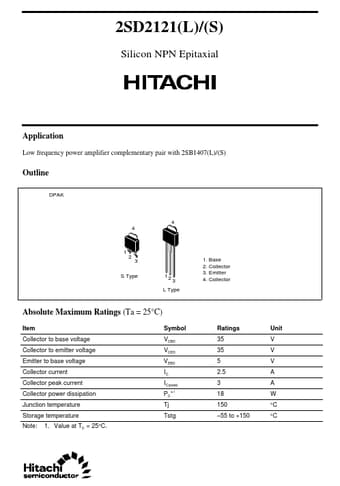

Preview of 2SD2121L PDF
2SD2121L Datasheet Preview Page 2 2SD2121L Datasheet Preview Page 3

Datasheet Details

Part number:

2SD2121L

Manufacturer:

Hitachi Semiconductor

File Size:

31.02 KB

Description:

Silicon npn epitaxial planar transistor.
