2SD2125 - NPN Transistor

2SD2125 Description

isc Silicon NPN Power Transistor .
High Breakdown Voltage- ：VCBO= 1500V (Min). High Switching Speed. Low Saturation Voltage. Built-in Damper Diode. Minimum Lot-to-L.

2SD2125 Applications

* Designed for color TV horizontal output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 600 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 6 A ICM Collector Curren

📥 Download Datasheet

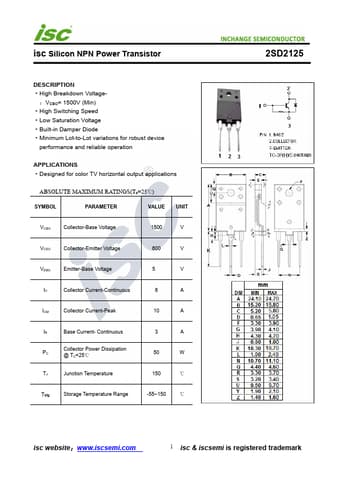

Preview of 2SD2125 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD2125
Manufacturer
INCHANGE
File Size
198.96 KB
Datasheet
2SD2125-INCHANGE.pdf
Description
NPN Transistor
