2SD2101 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SD2101

Manufacturer:

INCHANGE

File Size:

193.98kb

Download:

📄 Datasheet

Description:

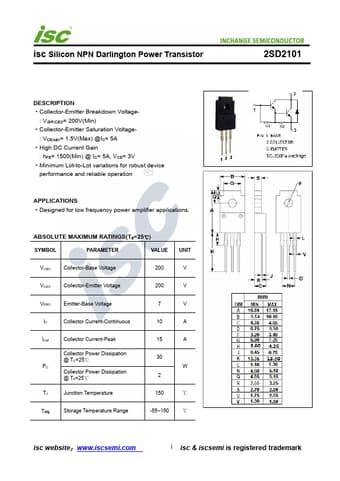

Npn transistor.

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 200V(Min)

Collector-Emitter Saturation Voltage- : VCE(sat)= 1.5V(M

2SD2101 Application

• Applications
• Designed for low frequency power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VC
