AN3501NFBP Luminance / chroma and linear audio signal processing IC

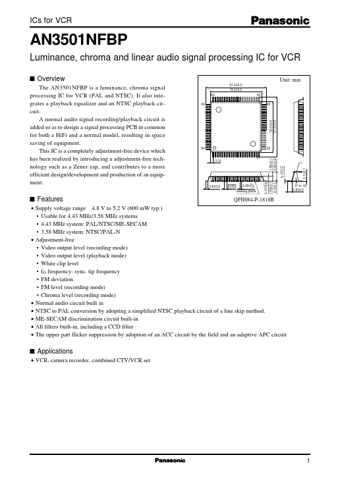

ICs for VCR AN3501NFBP Luminance, chroma and linear audio signal processing IC for VCR s Overview The AN3501NFBP is a luminance, chroma signal processing IC for VCR (PAL and NTSC). It also inte- 21.2±0.2 18.0±0.2 63 43 Unit: mm grates a playback equalizer and an NTSC playback cir- 64 42 cuit. A normal audio signal recording/playback circuit is 18.0±0.2 21.2±0.2 added so as to design a signal processing PCB in common for both a HiFi and a normal model, resulting in space saving of equ.

AN3501NFBP Features

* QFH084-P-1818B

* Supply voltage range 4.8 V to 5.2 V (600 mW typ.)
