AN6558S

Dual Low Noise/ High Slew Rate Operational Amplifiers

AN6558S Features

* Phase compensation circuit

* High voltage gain:GV=100dB typ.

* Low noise:Vni=0.9µ Vrms typ.

* High slew rate:SR=6V/µ s typ.

* High output current:IO=25mA typ. 1.35±0.25 9-pin SIL Plastic Package (Slim) (SIP009-P-0000A) AN6558 1.2±0.25 1.4±0.25 Unit:mm 1

AN6558S General Description

〈AN6557〉 Pin No. 1 2 3 4 5 6 7 8 9 VCC Ch. 1 output Ch. 1 inverting input Ch. 1 non inverting input VEE (GND) Ch. 2 non inverting input Ch. 2 inverting input Ch. 2 output VCC Pin name 〈AN6558, AN6558S〉 Pin No. 1 2 3 4 5 6 7 8 Pin name Ch. 1 output Ch. 1 inverting input Ch. 1 non inverting input VEE.

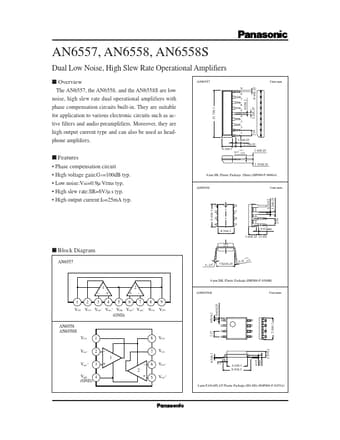

AN6558S Datasheet (33.99 KB)
