AN6551

Dual Operational Amplifier

AN6551 Features

* Phase compensation circuit

* High gain, low noise

* Output short-circuit protection

* Two circuits symmetrically arranged in 9-pin SIL plastic package 23.3±0.3 6 5 4 1.5±0.25 0.3

* 0.05 + 0.1 2 1 3.0±0.3 s Pin Descriptions Pin No. 2 3 4 5 6 7 8 1, 9 Pi

AN6551 General Description

Pin No. 2 3 4 5 6 7 8 1, 9 Pin name Ch.1 output Ch.1 inverting input Ch.1 non inverting input VEE (GND) Ch.2 non inverting input Ch.2 inverting input Ch.2 output VCC 9-pin SIL Plastic Package (SIP009-P-0000C) s Block Diagram VCC VCC 1 R3 Q3 Q10 Q13 Q11 Q8 4 R6 Q14 D1 R5 C2 Q6 Q4 Q5 Q7 R1 C1 R2 R4.

AN6551 Datasheet (39.88 KB)

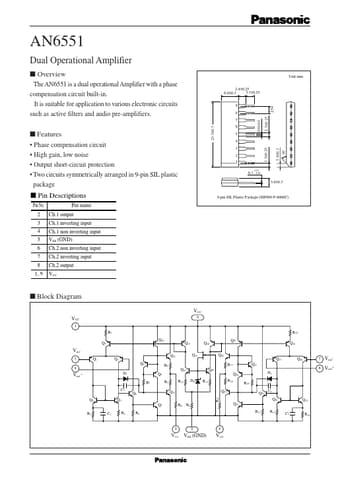

Preview of AN6551 PDF

Datasheet Details

Part number:

AN6551

Manufacturer:

Panasonic Semiconductor

File Size:

39.88 KB

Description:

Dual operational amplifier.
AN6551 Dual Operational Amplifier s Overview The AN6551 is a dual operational Amplifier with a phase compensation circuit built-in. It is suitable for.
